In the world of electronics, where components can be no bigger than a grain of rice, identifying a resistor’s value quickly and accurately is crucial. Rather than printing microscopic numbers, manufacturers rely on a simple but ingenious system: color-coded bands that communicate resistance, tolerance, and sometimes temperature coefficient. This guide breaks down how to read them and why it matters.
Why Color Bands Are Used
Tiny resistors can’t accommodate printed text, especially in compact circuits like smartphones or wearables. Color bands offer a space-saving, universal solution. With just a glance, technicians can decode a resistor’s specs—without needing test equipment—once they understand what each color signifies.

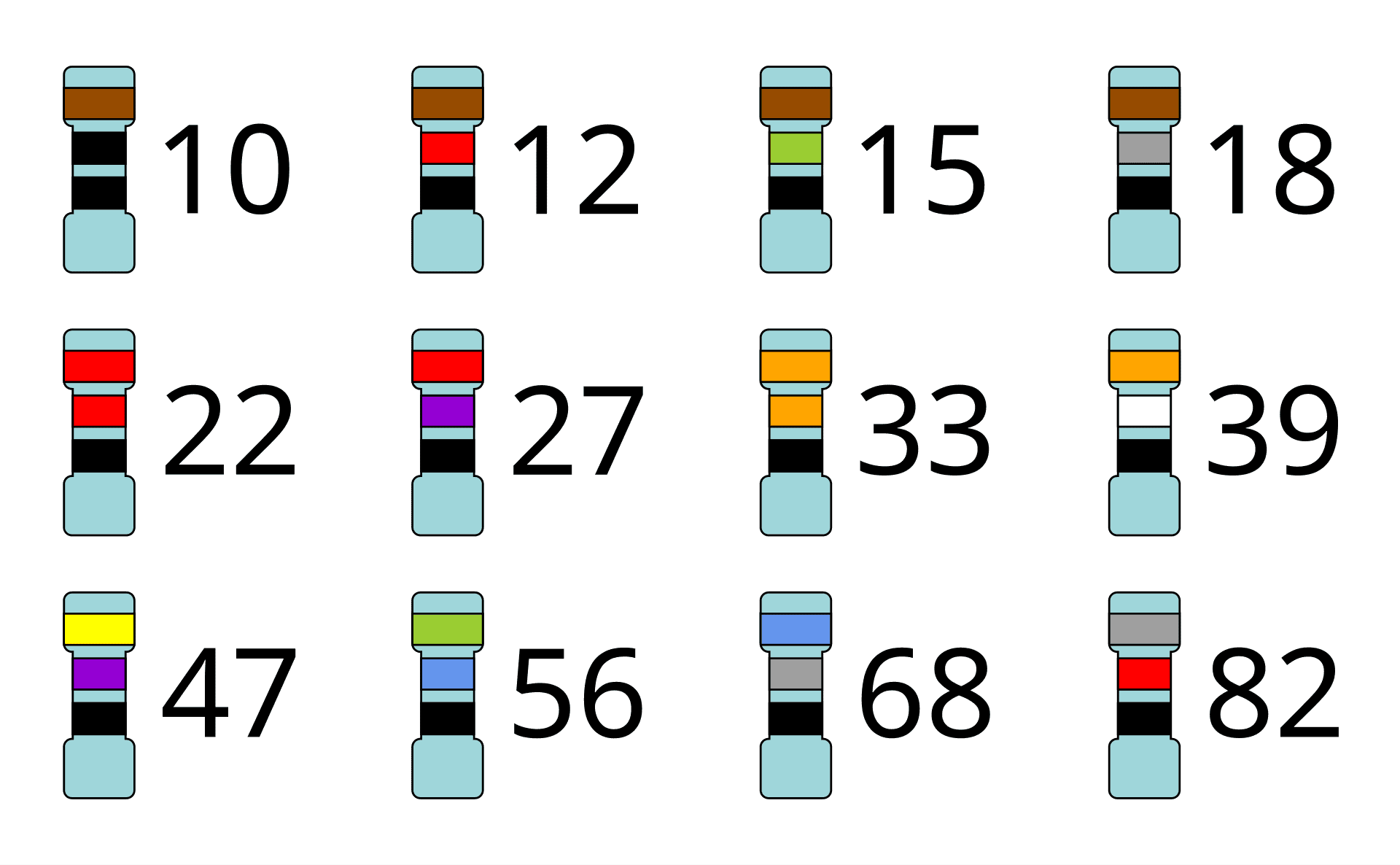

By Knarfili – Own work, CC0, https://commons.wikimedia.org/w/index.php?curid=94292966
Types of Resistor Color Codes
Resistors commonly come in 4-band, 5-band, or 6-band configurations. Here’s how each is structured:
| Band Type | Band 1 | Band 2 | Band 3 | Band 4 | Band 5 | Band 6 |
|---|---|---|---|---|---|---|
| 4-Band | 1st Digit | 2nd Digit | Multiplier | Tolerance | — | — |
| 5-Band | 1st Digit | 2nd Digit | 3rd Digit | Multiplier | Tolerance | — |
| 6-Band | 1st Digit | 2nd Digit | 3rd Digit | Multiplier | Tolerance | Temp. Coefficient (ppm/°C) |

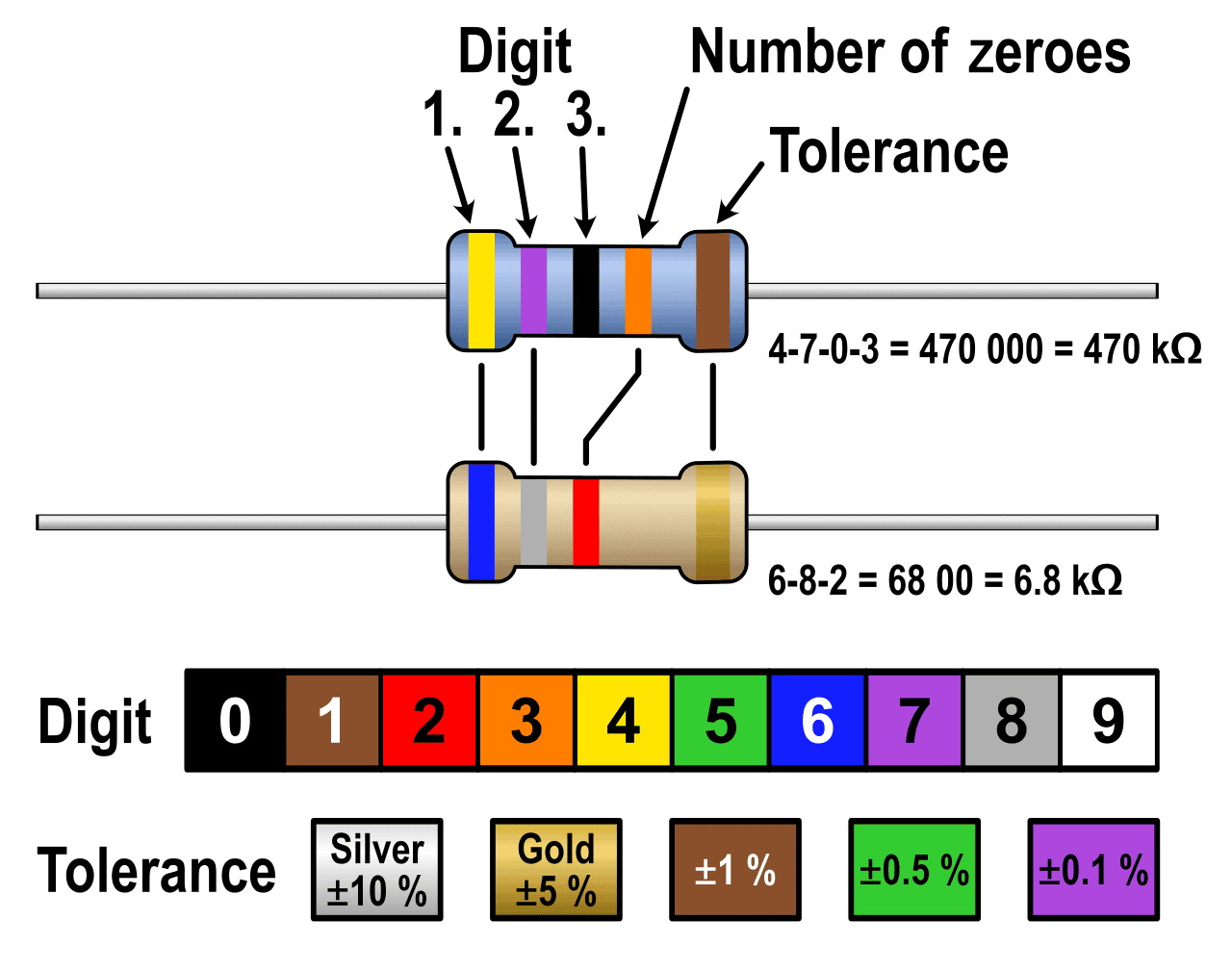

Resistor Color Code Chart
Here’s the full chart that covers digits, multipliers, tolerance, and temperature coefficient:
| Color | Digit | Multiplier | Tolerance | Temp. Coefficient (ppm/°C) |
|---|---|---|---|---|
| Black | 0 | ×10⁰ (1) | — | 250 |
| Brown | 1 | ×10¹ (10) | ±1% | 100 |
| Red | 2 | ×10² (100) | ±2% | 50 |
| Orange | 3 | ×10³ (1,000) | — | 15 |
| Yellow | 4 | ×10⁴ (10,000) | — | 25 |
| Green | 5 | ×10⁵ (100,000) | ±0.5% | — |
| Blue | 6 | ×10⁶ (1,000,000) | ±0.25% | 10 |
| Violet | 7 | ×10⁷ (10,000,000) | ±0.1% | 5 |
| Gray | 8 | ×10⁸ (100,000,000) | ±0.05% | — |
| White | 9 | ×10⁹ (1,000,000,000) | — | — |
| Gold | — | ×10⁻¹ (0.1) | ±5% | — |
| Silver | — | ×10⁻² (0.01) | ±10% | — |
| No Color | — | — | ±20% | — |
Practical Reading Examples
Example 1: 4-Band Resistor
Colors: Brown – Green – Red – Gold
- Band 1 (Brown) = 1
- Band 2 (Green) = 5
- Multiplier (Red) = ×100
- Tolerance (Gold) = ±5%
Result:
1 5 × 100 = 1,500Ω (1.5kΩ) ±5%
Example 2: 5-Band Precision Resistor
Colors: Red – Violet – Yellow – Orange – Brown
- Band 1 (Red) = 2
- Band 2 (Violet) = 7
- Band 3 (Yellow) = 4
- Multiplier (Orange) = ×1,000
- Tolerance (Brown) = ±1%
Result:
274 × 1,000 = 274,000Ω (274kΩ) ±1%
Common Temperature Coefficients (For 6-Band Resistors)
Temperature coefficients are mostly relevant in precision applications like instrumentation or medical devices. Here’s a quick breakdown:
| Color | Temp. Coefficient (ppm/°C) |
|---|---|
| Brown | 100 |
| Red | 50 |
| Orange | 15 |
| Yellow | 25 |
| Blue | 10 |
| Violet | 5 |
| Black | 250 |
Quick Tips to Read Resistors Accurately
- Locate the tolerance band first: It’s usually gold or silver and slightly separated from the rest.
- Read left to right from the opposite side of the tolerance band.
- Use a multimeter to verify if in doubt, especially for old or discolored components.
- Watch out for similar colors like red and orange or brown and black—use good lighting.
Real-World Uses and Importance
Understanding resistor color codes isn’t just for electronics hobbyists—it’s a core skill for electrical engineers, repair technicians, and DIY builders. In industries like automotive, aerospace, and consumer electronics, quick, accurate identification of resistance values is crucial to prevent component failure, improve design accuracy, and enhance product reliability.
Whether you’re building a DIY Arduino project or repairing a power supply board, the ability to decode a resistor by eye saves time, reduces errors, and builds foundational electronic literacy.
Pro Tip: Mnemonics can help remember the color order. A classic one:
“BB ROY of Great Britain had a Very Good Wife”
(Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White)
A Breakdown Of The 1K Resistor
Resistors are essential components in electronic circuits, with the 1k ohm resistor being one of the most commonly used values. Identifying resistors by their color bands helps engineers and hobbyists quickly determine their resistance value without using measuring tools. The 1k ohm resistor color code is brown-black-red-gold, where brown represents 1, black represents 0, red indicates a multiplier of 100, and gold shows a 5% tolerance.
When working with electronic projects, knowing how to read these color codes saves time and prevents circuit errors. The bands on a resistor follow a simple pattern that allows you to calculate the exact resistance. For a 1k ohm resistor with 5 bands (indicating 1% tolerance), the color code changes slightly to brown-black-black-brown-brown.
The color code system dates back to the 1920s and remains the standard method for marking resistors today. While modern digital multimeters can measure resistance directly, being able to read color codes is still an important skill for anyone working with electronic components.
Key Takeaways
- A standard 1k ohm resistor has four color bands: brown-black-red-gold, indicating 1k ohms with 5% tolerance.
- Resistor color codes follow a standardized system where the first two bands represent digits, the third is a multiplier, and the fourth indicates tolerance.
- The maximum current for a typical 1k ohm resistor is approximately 31.62mA, making it suitable for many common electronic applications.
Understanding Resistor Color Code
Resistor color codes are standardized markings that help identify the resistance value without needing measuring equipment. These color bands follow a specific pattern that indicates the resistance value in ohms, along with the tolerance level.
Basics of Color Code Chart
The resistor color code chart assigns specific colors to numbers. Each color represents a value:
- Black = 0
- Brown = 1
- Red = 2
- Orange = 3
- Yellow = 4
- Green = 5
- Blue = 6
- Violet = 7
- Gray = 8
- White = 9
For multipliers, the same colors apply but represent powers of 10. For example, red as a multiplier means ×10². For tolerance bands, different colors are used:
- Gold = ±5%
- Silver = ±10%
- No band = ±20%
This system helps engineers and technicians quickly identify resistor values during circuit assembly or troubleshooting. The chart remains consistent across all standard resistors, making it a universal language in electronics.
Reading the Color Bands
When reading resistor color codes, always start from the band closest to one end. Most resistors have a gap between the last band and the others to indicate the reading direction.
For a 1k ohm resistor with 4 bands, the color code would be:
- 1st band: Brown (1)
- 2nd band: Black (0)
- 3rd band: Red (×100)
- 4th band: Gold (±5% tolerance)
This translates to 10 × 100 = 1,000 ohms or 1k ohm with 5% tolerance.
The bands represent significant figures first, followed by a multiplier band. The gold or silver band (tolerance) is always placed to the right. If you’re unsure about direction, the tolerance band helps orient the resistor correctly.
Distinguishing Between 4-Band and 5-Band Resistors
4-band resistors are most common in general electronics. They include:
- Two bands for significant figures
- One multiplier band
- One tolerance band
5-band resistors offer more precision with:
- Three bands for significant figures
- One multiplier band
- One tolerance band

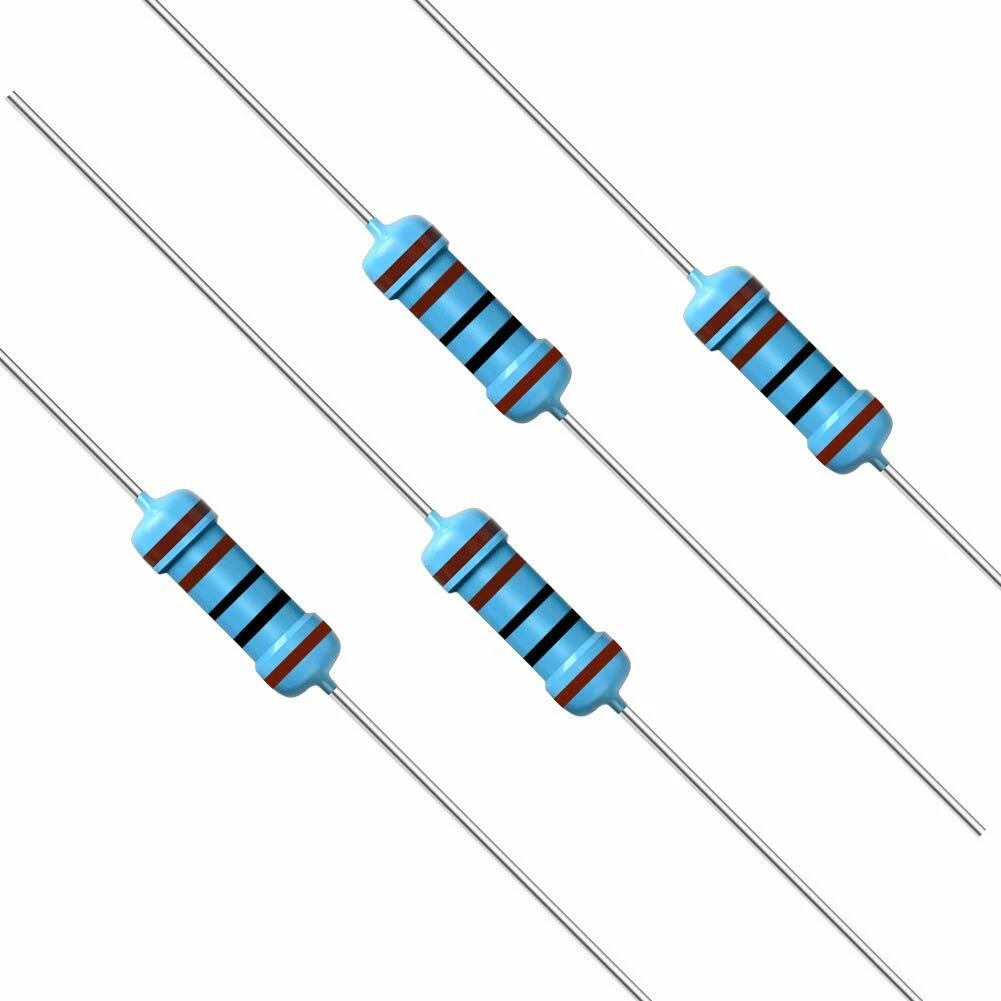

For example, a 1k ohm 5-band resistor might show:
- Brown (1)
- Black (0)
- Black (0)
- Brown (×10)
- Brown (±1% tolerance)
This gives 100 × 10 = 1,000 ohms with tighter 1% tolerance.
The extra band in 5-band resistors allows for more precise values, making them suitable for applications requiring greater accuracy. These are often used in precision instruments, medical devices, and high-end audio equipment where exact resistance values are crucial.
Calculating Resistance and Tolerance
Understanding how to calculate resistance values and tolerance is essential when working with 1k resistors. These calculations help ensure the right component is selected for your electronic project.
Interpreting Resistance Values
The first two or three color bands on a resistor indicate its resistance value. For a standard 1k ohm resistor, the color code typically shows brown-black-red. Brown represents 1, black represents 0, and red indicates a multiplier of 100.
To calculate the value:
- First band (brown) = 1
- Second band (black) = 0
- Third band (red) = ×100
The calculation becomes: 10 × 100 = 1,000 ohms or 1k ohm.
Some resistors use 5 or 6 bands, which provide more precise values. Many electronics technicians use resistor color code calculators to quickly determine values without memorizing all codes.
Assessing Tolerance and Reliability
The tolerance band, usually the last band on a resistor, indicates how much the actual resistance might vary from the stated value. For 1k resistors, common tolerance bands include:
- Gold: ±5% (950-1050 ohms)
- Silver: ±10% (900-1100 ohms)
- No band: ±20% (800-1200 ohms)
When selecting resistors for sensitive circuits, lower tolerance values (gold or even brown for ±1%) are preferable. Higher precision resistors generally cost more but provide more reliable performance.
Temperature coefficients, shown on 6-band resistors, further indicate how resistance changes with temperature fluctuations. This becomes important in applications where temperature stability matters.
Practical Applications of 1k Resistors
1k resistors are versatile components found in countless electronic designs. These small but mighty parts help control electrical flow in precise ways that make modern electronics possible.
Implementing Voltage Divider Circuits
Voltage dividers are among the most common applications for 1k resistors. When paired with another resistor, a 1k resistor can split voltage into precise proportions. This setup is invaluable in circuits where components need specific voltage levels.
For example, a 1k resistor and a 2k resistor in series will divide a 9V source into 3V across the 1k resistor and 6V across the 2k resistor. This simple principle powers numerous applications:
- Sensor interfaces: Converting sensor outputs to readable voltage levels
- Reference voltages: Creating stable reference points for comparators
- Level shifting: Adjusting voltage levels between incompatible circuit sections
Engineers often use 1k resistors in these dividers because they draw minimal current while maintaining signal integrity. This balance makes them ideal for battery-powered devices where efficiency matters.
Designing Current Limiting for LED Circuits
LEDs need protection from excessive current, and 1k resistors excel at this task. Without a current-limiting resistor, LEDs would quickly burn out when connected to typical power sources.
A 1k resistor works well for many LED applications, especially with 5V or 3.3V supplies. The calculation follows Ohm’s Law: R = V/I, where V is the voltage across the resistor and I is the desired current.
For a red LED with a 1.8V forward voltage on a 5V supply:
- Voltage across resistor: 5V – 1.8V = 3.2V
- With a 1k resistor: Current = 3.2V ÷ 1000Ω = 3.2mA
This current level produces a visible but not overly bright LED illumination, perfect for indicator lights on control panels or electronics projects.
Usage in Signal Conditioning
In signal processing circuits, 1k resistors play crucial roles in conditioning signals for reliable processing. They help clean up electrical noise and establish proper impedance matching.
As pull-down resistors, 1k components prevent floating inputs in digital circuits. When connected between an input pin and ground, they ensure a defined logic “low” state when switches are open.
1k resistors also work in:
- Filter circuits: Creating simple low-pass or high-pass filters with capacitors
- Feedback networks: Stabilizing op-amp circuits for predictable gain
- Impedance matching: Preventing signal reflections in high-frequency applications
These applications rely on the 1k resistor’s ability to provide enough resistance without excessive loading of signal sources. The moderate value strikes an excellent balance between current limitation and noise reduction.
Technical Specifications and Standards
Resistors follow specific technical standards that ensure consistent performance across different manufacturers. These standards include color coding systems, measurement protocols, and specifications for temperature-related behavior.
Decoding Resistance with a Multimeter
A multimeter provides the most accurate way to measure a 1k resistor’s actual resistance value. To measure properly, set the multimeter to the resistance (ohm) mode, ideally at the 2k or 20k range for a 1k resistor.
When testing, the resistor should be disconnected from any circuit to avoid false readings. Simply touch the multimeter probes to each end of the resistor – polarity doesn’t matter with standard resistors.
A properly functioning 1k resistor should read approximately 1,000 ohms, though some variation is normal based on the tolerance rating. For example:
- 5% tolerance (gold band): 950-1,050 ohms
- 1% tolerance (brown band): 990-1,010 ohms
This measurement can verify if the color bands have been correctly interpreted or if the component has degraded over time.
Understanding the IEC 60062 Standard
The IEC 60062 international standard establishes the color coding system for resistors. This standard ensures that a 1k resistor manufactured in Japan will have the same color bands as one made in Germany.
For a standard 4-band 1k resistor, the color code follows this pattern:
- First band (brown): 1
- Second band (black): 0
- Third band (red): ×100
- Fourth band: tolerance
The calculation is (1×10 + 0×1) × 100 = 1,000 ohms or 1k.
For 5-band resistors, the first three bands represent significant digits, the fourth is the multiplier, and the fifth indicates tolerance. A 1k resistor with 1% tolerance would show:
- Brown-Black-Black-Brown-Brown
The IEC standard also covers numerical marking systems for small resistors where color bands aren’t practical.
Factors Affecting Temperature Coefficient of Resistance
The Temperature Coefficient of Resistance (TCR) measures how a resistor’s value changes with temperature, expressed in parts per million per degree Celsius (ppm/°C).
Different resistor materials exhibit varying TCR values:
- Metal film: 50-100 ppm/°C
- Carbon film: 200-500 ppm/°C
- Wire-wound: 20-100 ppm/°C
For a 1k resistor with a TCR of 100 ppm/°C, a 10°C temperature increase would change its resistance by approximately 1 ohm (0.1%).
Environmental factors like humidity and mechanical stress can also affect stability. In critical applications where precise resistance is needed across varying temperatures, low-TCR resistors should be selected.
High-stability resistors often cost more but maintain their 1k ohm value more consistently, which is crucial for precision timing circuits and measurement equipment.
Frequently Asked Questions
Resistor color codes can be confusing for beginners and experienced electronics enthusiasts alike. Here are answers to common questions about 1K ohm resistor identification and color coding.
What is the color code for a 1K ohm resistor?
The standard color code for a 1K ohm resistor is Brown-Black-Red-Gold when using the 4-band system. The first band (brown) represents 1, the second band (black) represents 0, and the third band (red) means multiply by 100. Together this gives 1-0-00 or 1000 ohms, which equals 1K. The gold band indicates a 5% tolerance.
In the 5-band system, a 1K ohm resistor would be marked as Brown-Black-Black-Brown-Gold. The first three bands represent the significant digits, the fourth is the multiplier, and the fifth indicates tolerance.
How can I decipher the color bands on a resistor to determine its resistance value?
To read resistor color bands, hold the resistor with the grouped bands toward the left side. Read the bands from left to right. The first two (or three in a 5-band resistor) bands represent digits. The next band is the multiplier. The last band indicates tolerance.
Each color represents a specific number: black (0), brown (1), red (2), orange (3), yellow (4), green (5), blue (6), violet (7), grey (8), and white (9). For multipliers, each color represents a power of 10.
Is there a standard color chart available for identifying resistor values, such as 1K ohms?
Yes, standard resistor color charts are widely available in electronics textbooks, websites, and as printable reference cards. These charts show each color with its corresponding numerical value and function.
Most charts include all ten colors (black through white) and their values for digit, multiplier, and tolerance bands. Many electronics suppliers provide free reference cards with orders or downloadable charts on their websites.
What are the color bands on a 1K ohm resistor using the 4-band color code?
In the 4-band color code system, a 1K ohm resistor has these bands:
- First band: Brown (represents digit 1)
- Second band: Black (represents digit 0)
- Third band: Red (represents multiplier 100)
- Fourth band: Gold (represents tolerance ±5%)
When read together, this indicates 10 × 100 = 1000 ohms or 1K ohm, with a 5% tolerance. If the fourth band is silver, the tolerance would be ±10%.
Can you explain the difference in color codes between 1K ohm, 2K ohm, and 10K ohm resistors?
The color codes for these common resistor values differ primarily in their first two bands:
A 1K ohm resistor uses Brown-Black-Red (1-0-×100) for 1000 ohms.
A 2K ohm resistor uses Red-Black-Red (2-0-×100) for 2000 ohms.
A 10K ohm resistor uses Brown-Black-Orange (1-0-×1000) for 10,000 ohms.
Notice that 1K and 2K share the same multiplier band (red), while 10K uses orange as its multiplier to represent ×1000.
What role do the tolerance and temperature coefficient bands play in the color coding of 1K ohm resistors?
The tolerance band (usually fourth in a 4-band resistor) indicates how much the actual resistance might vary from the labeled value. Common colors are gold (±5%), silver (±10%), and brown (±1%).
For a 1K resistor with gold tolerance, the actual resistance could range from 950Ω to 1050Ω. This precision level is important in sensitive circuits.
Temperature coefficient bands appear only in precision resistors with 5 or 6 bands. They indicate how much the resistance changes with temperature, measured in parts per million per degree Celsius (ppm/°C).
